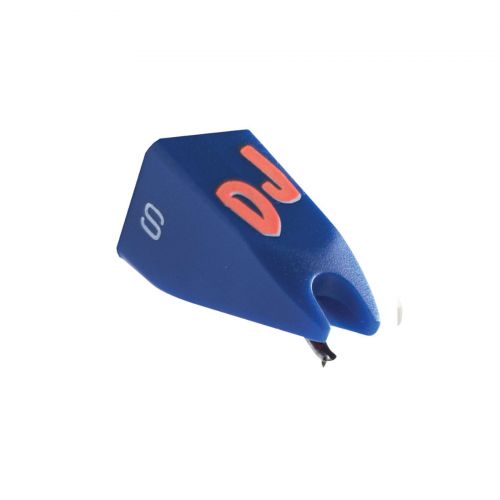

Output voltage at 1000Hz, 5cm/sec. - 6 mV Channel balance at 1kHz - 2 dB Channel separation at 1kHz - 23 dB Channel separation at 15 kHz - 15 dB Frequency range at -3dB - 20-20.000 Hz Frequency response - 20-18.000 Hz 3dB/-2dB Tracking ability at 315 Hz at recommmende tracking force - 80 μm Compliance, dynamic lateral - 9 μm/m N Stylus type - Spherical Stylus tip radius - R 18 μm Tracking force range - 2.0-4.0 g (20-40 mN) Tracking force recommended - 3.0 g (30 mN) Tracking angle - 20° Internal impedance, DC resistance - 750 Ohm Internal inductance - 450 mH Recommended load resistance - 47 kOhm Recommended load capacitance - 200-600 pF Concorde cartridge weight - 18.5 g
