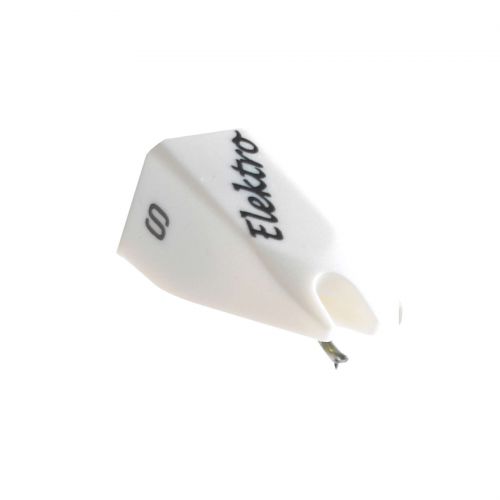

Stylus Elektro

Output voltage at 1000Hz, 5cm/sec.  -  7.5 mV
Channel balance at 1kHz  -  1,5 dB
Channel separation at 1kHz   - 25 dB
Channel separation at 15 kHz  -  15 dB
Frequency range at -3dB  -  20-22.000 Hz
Frequency response  -  20 – 18.000 Hz +3/-2 dB
Tracking ability at 315 Hz at recommmende tracking force -  80 μm
Compliance, dynamic lateral  -  6 μm/m N
Stylus type  -  Spherical
Stylus tip radius  -  R 18 μm
Tracking force range  -  3.0-5.0 g (30-50 mN)
Tracking force recommended  -  4.0 g (40 mN)
Tracking angle  -  20°
Internal impedance, DC resistance  -  750 Ohm
Internal inductance -   450 mH
Recommended load resistance  -  47 kOhm
Recommended load capacitance  -  200-600 pF
Concorde cartridge weight  - 18.5 g
