Ortofon

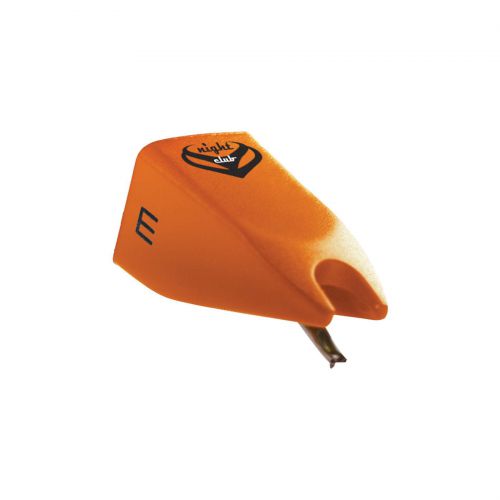

Stylus Nightclub MK2

Eco-part
including eco-tax :
REF. : STYLUS-NCMK2
Disponibilité
Sélectionnez un article pour voir la disponibilité de l’article

Replacement stylus for cartridges Nightclub MK2

Tracks
Sold by :
Quantité minimum :
Add to cart
Add to cart
Add to cart
Add to cart
,
This purchase will give you Point(s)

Release description

Output voltage at 1000Hz, 5cm/sec.  -  8 mV
Channel balance at 1kHz  -  1.5 dB
Channel separation at 1kHz   - 23 dB
Channel separation at 15 kHz  -  15 dB
Frequency range at -3dB -   20-22.000 Hz
Frequency response  -  20-20.000 Hz +/- 1.5 dB
Tracking ability at 315 Hz at recommmende tracking force  -  80 μm
Compliance, dynamic lateral -   20 μm/m N
Stylus type  -  Special Elliptical
Stylus tip radius  -  r/R 13/25 μm
Tracking force range  -  2.0-5.0 g (20-50 mN)
Tracking force recommended  -  3.0 g (30 mN)
Tracking angle  -  20°
Internal impedance, DC resistance  -  1.000 Ohm
Internal inductance  -  580 mH
Recommended load resistance   - 47 kOhm
Recommended load capacitance  -  200-600 pF
Concorde cartridge weight  - 18.5 g
