Ortofon

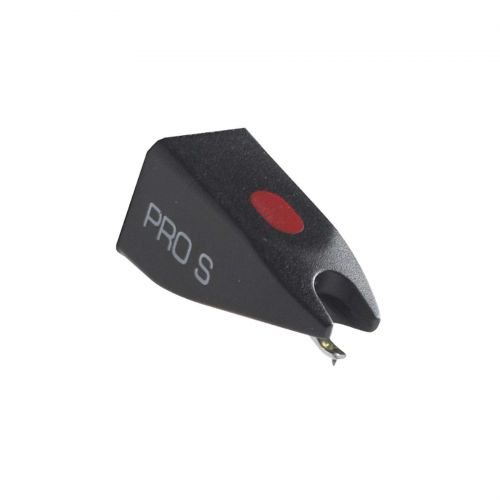

Stylus PRO S

REF. : STYLUS-PRO_S

Replacement stylus for PRO S cartridges

Piste
Sold by :
Quantité minimum :
, *
Eco-part
including eco-tax :
Instead of
Point(s)
Quantity
Quantity
Add to cart
Add to cart
Add to cart
Add to cart
Alert a friend
Your friend's e-mail address : Your e-mail address :
Your friend's name : Your name :

Your comment : 500 Characters left

Release description

Output voltage at 1000Hz, 5cm/sec.  -  5 mV
Channel balance at 1kHz  -  2 dB
Channel separation at 1kHz  -  20 dB
Channel separation at 15 kHz  -  15 dB
Frequency range at -3dB  -  20-18.000 Hz
Frequency response   -  20-18.000 Hz +/-2 dB
Tracking ability at 315 Hz at recommmende tracking force  -  70 μm
Compliance, dynamic lateral  -  7 μm/m N
Stylus type -  Spherical
Stylus tip radius -  R 18 μm
Tracking force range  -  3.0-5.0 g (30-50 mN)
Tracking force recommended  -  4.0 g (40 mN)
Tracking angle  -  20°
Internal impedance, DC resistance  -  750 Ohm
Internal inductance  -  450 mH
Recommended load resistance  -  47 kOhm
Recommended load capacitance  -  200-600 pF
Concorde / OM cartridge weight  -  18.5 g / 5.0 g
