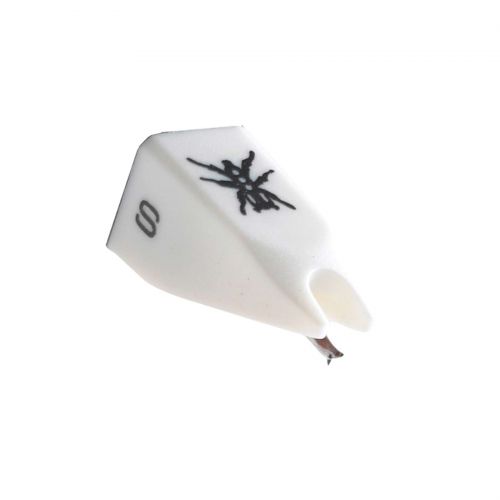

Stylus Q.Bert

Output voltage at 1000Hz, 5cm/sec. -  11 mV
Channel balance at 1kHz  -  1,5 dB
Channel separation at 1kHz -  22 dB
Frequency range at -3dB -  20-18.000 Hz
Frequency response -  20-20.000 Hz -3 dB
Tracking ability at 315 Hz at recommmended tracking force -  980 μm
Compliance, dynamic lateral -  12 μm/m N
Stylus type -  Spherical
Stylus tip radius - R 18 μm
Tracking force range -  2.0-4.0 g (20-40 mN)
Tracking force recommended -  3.0 g (30 mN)
Tracking angle -  20°
Internal impedance, DC resistance -  1.680 Ohm
Internal inductance -  920 mH
Recommended load resistance -  47 kOhm
Recommended load capacitance -  200-400 pF
Concorde cartridge weight  - 18.5 g
